Part #:
83MRC
MINI-SYNC RECEPTACLE MALE STRAIGHT 3 POLE 1FT LEADS PVC
| Active Revision | A |
|---|---|
| Ideal Application | Typical applications include sensors on conveyors, automated assembly equip, robotics, packaging machinery, Bus systems, and Transportaion equipment Products that typically use Mini-Sync connectors are proximity sensors, limit switches, photo cells, valves, tools, foot operated switches, crane/hoist controls. |
| Color | Black |
| UPC Code | 782862881231 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Active Revision | A |
|---|---|
| Brand | Ericson |
| Sub Brand / Trademark | Perma-Sync / Mini-Sync |
| Category | Receptacles |
| Sub Category | Male |
Other Resources
Technical Info
| Connector Type | Mini |
|---|---|
| Configuration Style | MR - Male Receptacle |
| # of Poles | 3 |

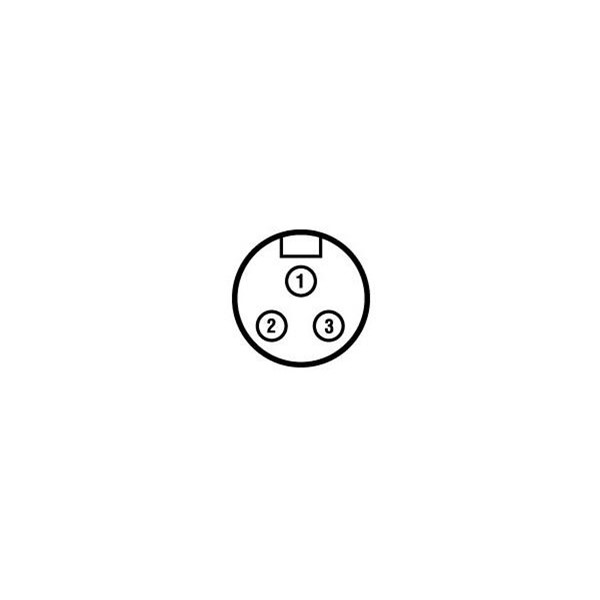

| Wiring Code | 1 = Green, 2 = Black, 3 = White |
| # of Keyways | Single |
| Cable Length (ft) | 1 |
| Cable Type | 16 AWG 600VAC WIRE |
| Load Capacity (Amps) / Volts | 13A, 600VAC |
| Contact Material | Brass, Gold Plated over Nickel |
| Contact Carrier Material | Nitrile Rubber |
| Contact Sleeve Material | Stainless Steel |
| Over molded Body Material | PVC |
| Coupling Nut Material | Machined Aluminum, Black Anodized |
| Environmental Rating | IP68, NEMA 6P |
Standards & Certifications
| UR | UR Recognized Component to ANSI/UL 2238, File E195472 |
|---|---|
| cUR | cUR Recognized Component to CSA-C22.2 No. 182.3, File E195472 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8536694020 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 0.10000 |
| Shipment Packaging Length (in) | 12 |
| Shipment Packaging Width (in) | 9 |
| Shipment Packaging Height (in) | 2 |
| Warranty | 1 Year |
