Part #:
26100-LED

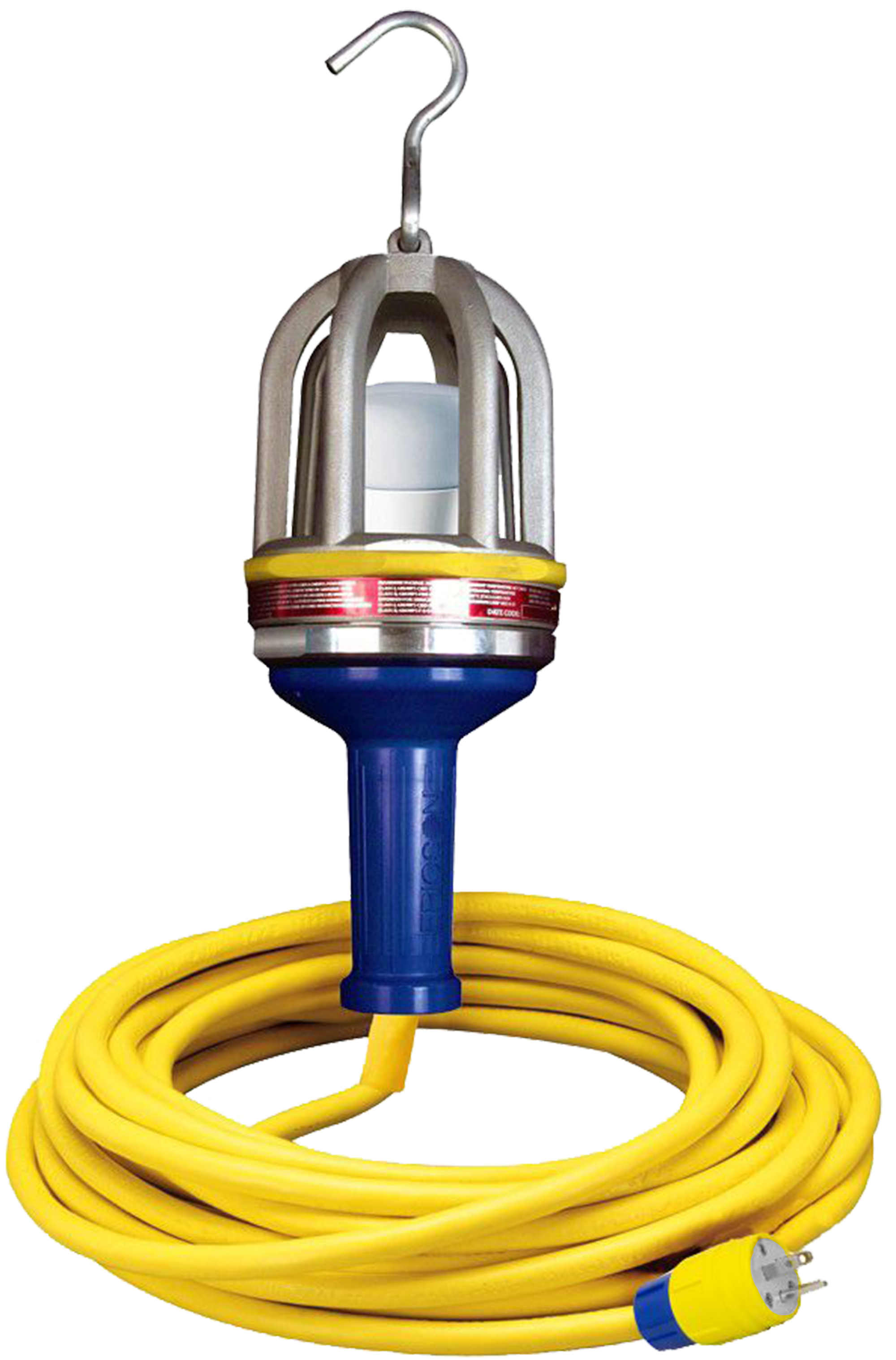

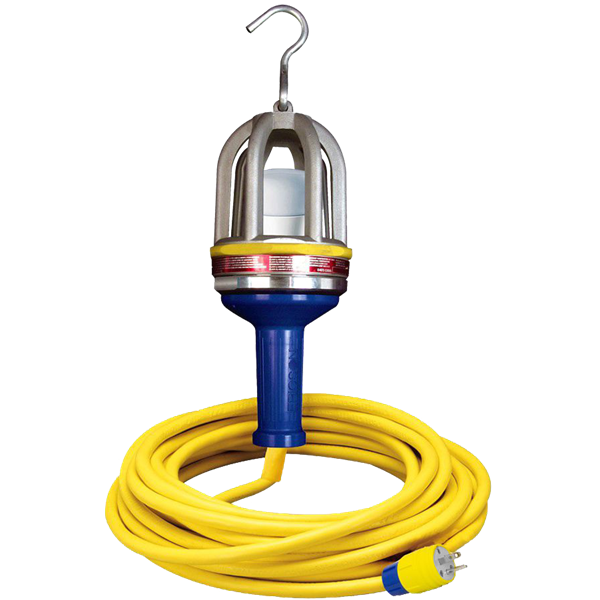

HANDLAMP, HAZARDOUS LOCATION GRADE LED OMNI W/ 100FT OF 16/3 SOW CABLE W/ NEMA 5-15 WATER TIGHT PLUG
• cETLus listed
• Class I & II Div 1 & 2, Groups C, D, F & G
• NEMA 4X Rated, and Wet location rated
• Copper-free, cast aluminum, anti-spark guard
• High-impact tempered borosilicate glass globe
• Heat, chemical and impact resistant, glass reinforced handle
• Cord restraint seal system provides flex and water resistance
• Accommodates #16/3 to #14/3 in various types of cord jackets
• Hand lamps are available in 25, 50 and 100 ft. cord lengths
• -20ºC to 40ºC Ambient
| Active Revision | D |
|---|---|
| Color | Gray |
| UPC Code | 782862900604 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Active Revision | D |
|---|---|
| Brand | Ericson |
| Sub Brand / Trademark | XP HL |
| Category | Hazardous Location Grade |
| Sub Category | Hand Lamp |
Other Resources
Technical Info
| Bulb Type | LED OMNI |
|---|---|
| Lumens | 1100 |
| Cable Length | 100 |
| Cable | 16/3 |
| Cable Type | SOW |
| Max Amps | 0.08 |
| Max Volts | 120 |
| Max Watts | 11 |
| Primary Cable End | NEMA 5-15 (1510-PW6P) Water Tight Plug |
| NEMA Environment | Class I, Division 1 & 2, Groups C,D,F &G |
| Finish | High Impact High insulation properties and heavy duty aluminum guard |
| Construction | 2600-LED Explosion Proof Handlamp, High Impact High insulation properties and heavy duty aluminum guard |
Standards & Certifications
| ETL | ETL Listed to ANSI/UL 153 & UL844 |
|---|---|
| cETL | cETL Listed to CSA-C22.2 No. 250.4 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8544429090 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 16.30000 |
| Shipment Packaging Length (in) | 24 |
| Shipment Packaging Width (in) | 13 |
| Shipment Packaging Height (in) | 6 |
| Warranty | 1 Year |
L1000508 - Ericson 2600 Series Handlamp
