Part #:
1007-XP-150-CART-515-XP

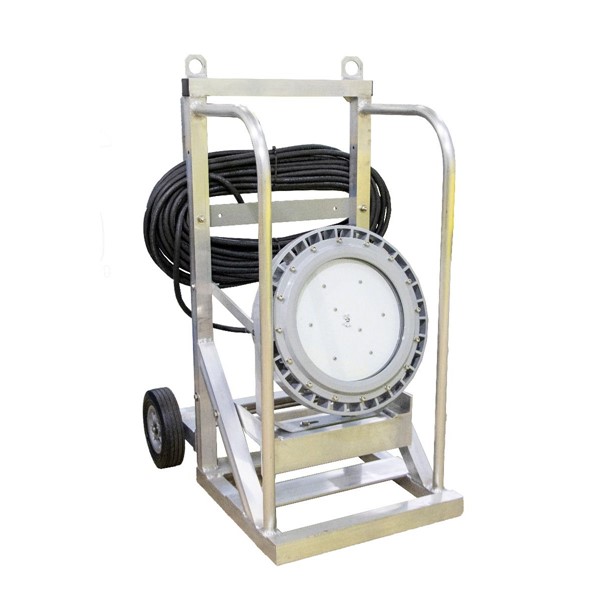

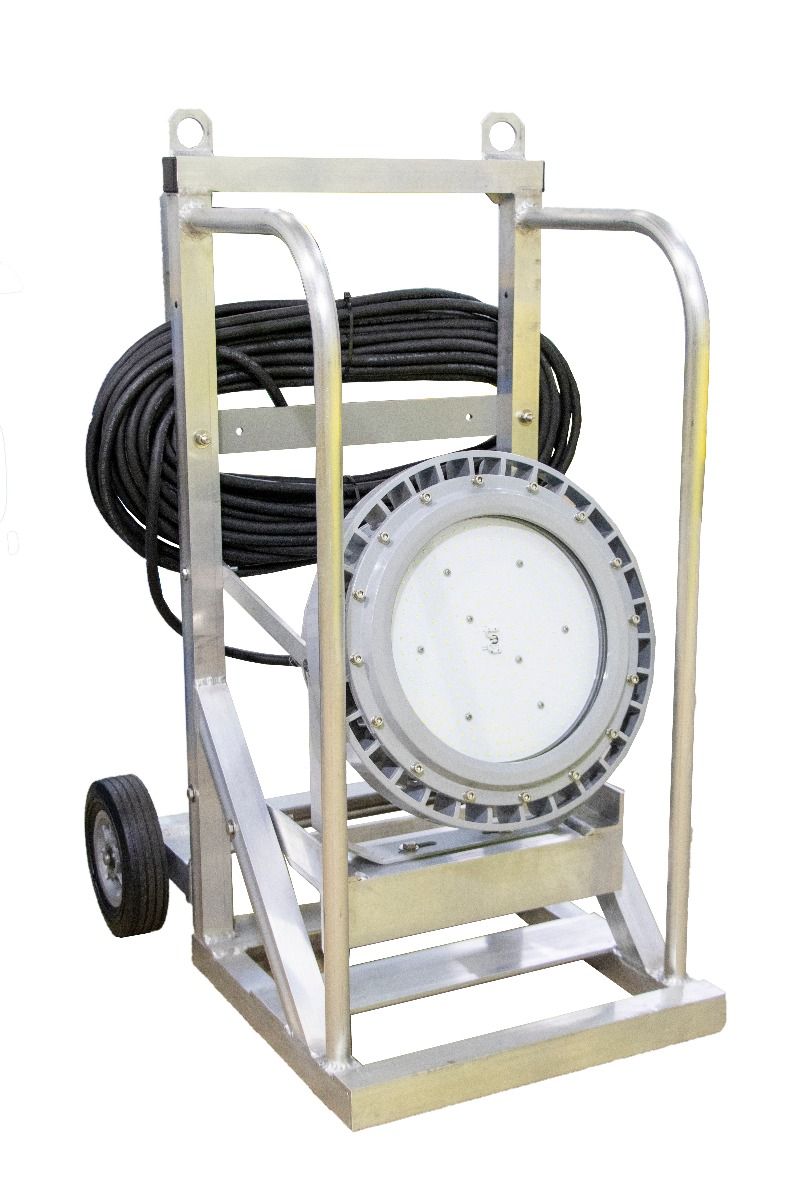

1007-XP-150 LED TANK AND HAZARDOUS WORKLIGHT CART w/100 FT 14/3 BLK SOOW AND UGP-15231 XP PLUG
• cETLus listed lamp• Heavy duty, light weight, spark resistant aluminum frame• Bolt on lifting eyes (Optional)• Cord management bracket• Class I, Division 1, Groups C, D• Class l, Division 2, Groups A,B,C,D• Class ll, Division 1, Groups E,F,G• Class ll, Division 2, Groups E,F,G • Class lll• NEMA 4X, IP66 • T3 temperature rating• High efficacy: up to 140lm/W• CRI>70• Copper free aluminum• High vibration resistance• Ambient temperature range: -40°C to 60°C
| Active Revision | A |
|---|---|
| Ideal Application | Portable Mobile Lighting for Oil & Gas Industries, Distilleries, Paint Manufacturing, Pumping Stations, Mining, Vessel Lighting, High Humidity Areas, High Temperature Locations |
| Color | Gray |
| UPC Code | 782862926529 |
| Country of Origin | USA |
- Availability:
-
BOM
Specifications
| Active Revision | A |
|---|---|
| Brand | Ericson |
| Sub Brand / Trademark | Hi-Bay XP on Cart |
| Category | Hazardous Location Grade |
| Sub Category | Wide Area Light |
Other Resources
Technical Info
| Bulb Type | LED |
|---|---|
| Lumens | 21000 |
| Cable Length | 100 |
| Cable | 14/3 |
| Cable Type | SOW |
| Max Amps | 1.2 |
| Max Volts | 120 |
| Max Watts | 150 |
| Primary Cable End | NEMA 5-15 (UGP-15231) Hazardous Location Plug |
| NEMA Environment | Class I Division 1, Groups C, D • Class I Division 2, Groups A, B, C, D • Class II Division 1 & 2, Groups E, F, G • Class III |
| Construction | Cast Aluminum & Welded Aluminum Cart |
Standards & Certifications
| RoHS | RoHS Compliant |
|---|
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 9405106020 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 120.00000 |
| Shipment Packaging Length (in) | 26 |
| Shipment Packaging Width (in) | 24 |
| Shipment Packaging Height (in) | 38 |
| Warranty | 1 Year |
L1000894 - Ericson Product Category Overview Guide
